CP Series es la perfecta solución
para audio de alta calidad en amplia gama de portátiles e instalaciones.-
| Model | CP12 |
| Configuración | 2 vias altavoz activo |
| LF Transductor: | 203 mm (8 pulgadas), cono |
| HF Transductor: | 35.6 mm (1.4 in) driver compresor |
| Respuesta de frecuencia (-6 dB) | 56 - 20 kHz |
| Rango de frecuencia (-10 dB) | 53 - 20 kHz |
| Angulo de cobertura nominal: | 90° Axiimetrico |
| Maxima repuesta SPL1: | 124 dB |
| Amplificador: | Class D Pico: 800 W (LF), 200 W (HF) |
| Controles: | Potencia 2 × ganancia Interruptor de Microfono Interruptor de contorno de 6 vias |
| Indicadores: | LED de encendido 2 × indicador en LED de entrada de señal Entrada B de MIC selecionable con LED LED de limitador activo |

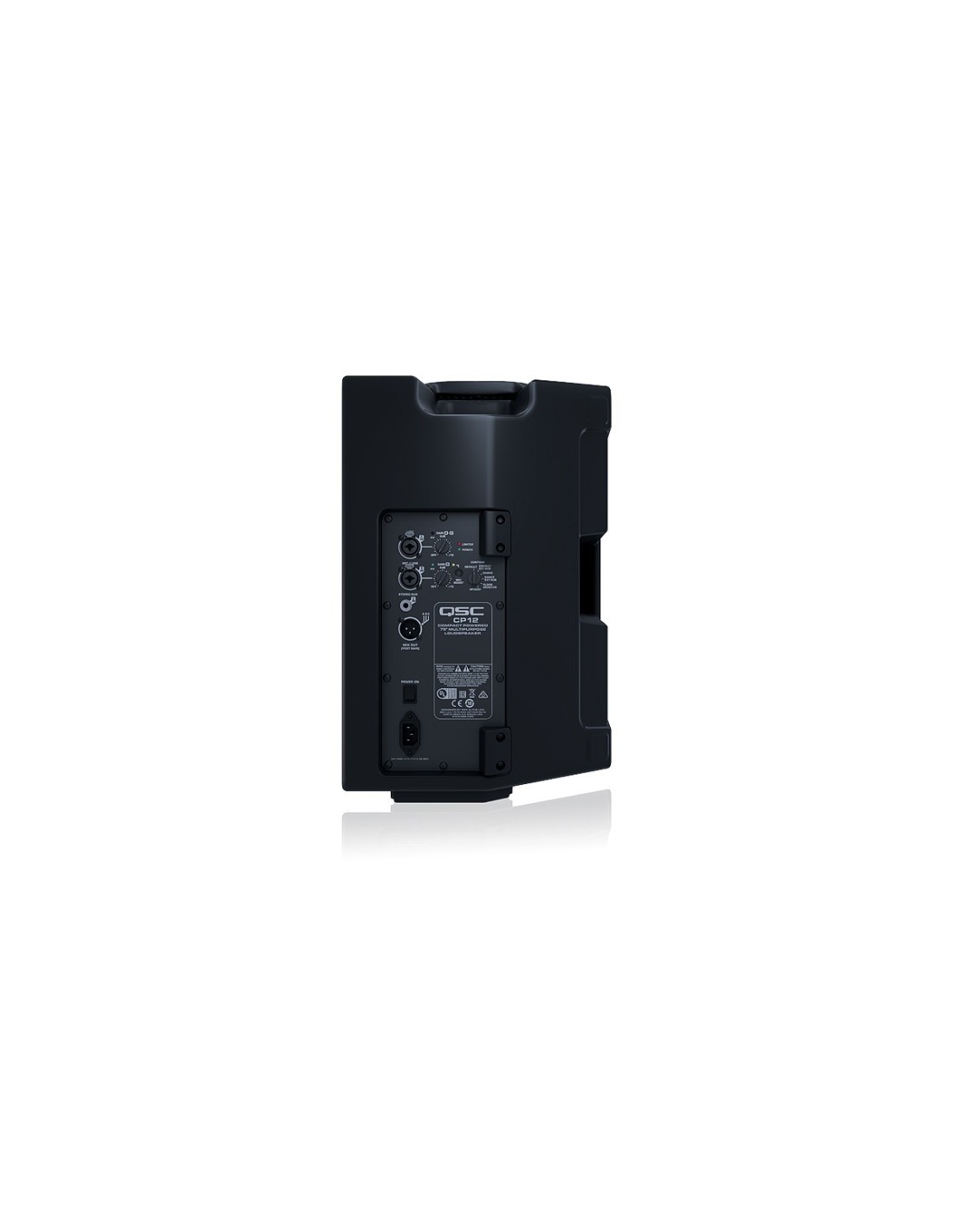

| Conexiones | 2 × Bloqueador XLR/F ¼” combo (Linea Entrada y Mic/Line Entrada) 1 × 3.5 mm TRS (Stereo Entrada) 1 × XLR/M (Mix Salida) 1 × IEC conector de red electrica |
| AC entrada de Red : | Compatible para todos los paises 100 – 240 VAC, 50 – 60 Hz |
| AC Potencia de consumo (1/8th Power): | 100 VAC, 0.75A - 240VAC 0.31A |
| Enclosure Material: | Polypropylene |
| Attachment Points: | M8 threaded insert |
| Color: | Black (RAL 9011) |
| Grille: | 18 Gauge powder-coated steel |
| Speaker Dimensions (H×W×D): | 411 × 273 × 256 mm 16.2 × 10.7 × 10.1 in |
| Carton Dimensions (H×W×D): | 360 × 360 × 496 mm 14.2 × 14.2 × 19.5 in |
| Net Weight: | 9.5 kg / 21.0 lb |
| Shipping Weight: | 11.5 kg / 25.4 lb |
| Regulatory: | EMC, UL, CB |
| Optional Accessories: | CP8 Tote, CP8 Outdoor Cover, CP8 Yoke |
1 Peak SPL is measured on-axis at 1 m, with dynamic pink noise
*Preliminary specifications are subject to change.
